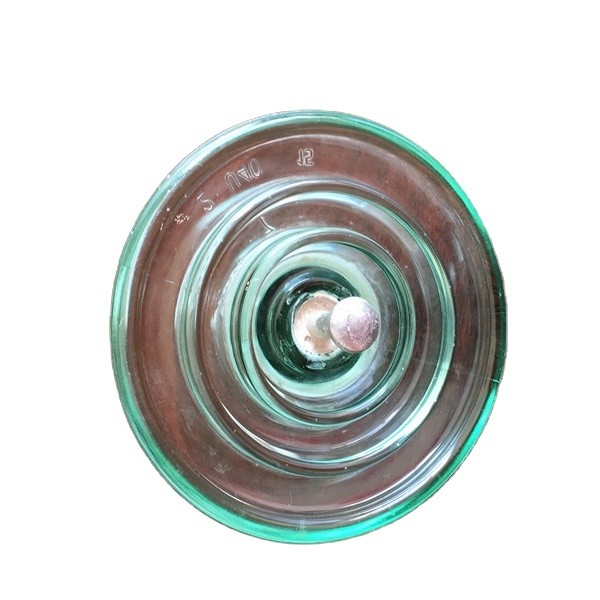

LXP-120 toughened glass disc suspension insulator

Product Categories

Hangfan Electric Power Co.,Ltd

Contact Now

Name: LXP120 toughened glass disc suspension insulator
Brand: aobest
Price: 6.60 USD

Place of Origin : Henan, China

Brand Name : aobest

Model Number : insulator

Type : Insulator

Material : glass

Application : High Voltage

Rated Voltage : 100KV

Tensile Strength : 60KN

diameter : 255mm

MECHANICAL FALING LOAD : 120KN

Packaging Details : carton or bamboo sheet.

MOQ : 5000 pieces

Price : $6.60/pieces 5000-9999 pieces

Contact Now

LXP-120 standard suspension insulator

Welcome your contact.

Email: aobest(at)aobest.cn

WhatsApp:+86 13310857673

Wechat:+86 13316918635

LXP-120 insulator specification

GENERAL TYPE	U120B/146	U120B/127
TYPE OF RUITAI	LXP-120	LXP2-120
( mm ) DIAMETER D	255	255
( mm )SPACING H	146	127
( mm ) CREEPAGE L	320	320
( mm )	16	16
( kN )MECHANICAL FALING LOAD	120	120
( kN ) TENSION LOAD TEST	60	60
( kV ) POWER FREQUENCY WITHSTAND VOLTAGE(WET)	40	40
( kV ) LIGHTENING IMPULSE WITHSTAND VOLTAGE LIGHTENING IMPULSE WITHSTAND VOLTAGE	100	100
( P.U )IMPULSE PUNCTURE VOLTAGE	2.8	2.8
( kV ) POWER FREQUENCY PUNCTURE VOLTAGE	130	130
( µV ) ( 10kV,1MHz)	50	50
( kV ) ELECTRIC IRON VISUAL TEST (CAP/PIN)	18/22	18/22
POWER FREQUENCY ELECTRIC ARC VOLTAGE POWER FREQUENCY ELECTRIC ARC VOLTAGE	0.12s/20kA	0.12s/20kA
( kg )NET WEIGHT PER UNIT	4	4

LXP-120 toughened glass disc suspension insulator

The LXP-120 insuator package:

LXP-120 toughened glass disc suspension insulator

LXP-120 toughened glass disc suspension insulator Images
