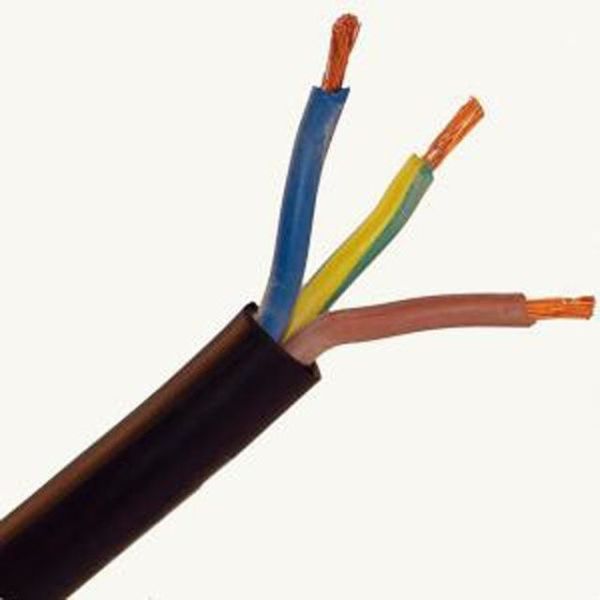

Rubber Power Cable
1. Standard: According to GB5013-85(Equal to IEC245),also can do by standard of ASTM,BS,DIN and AS/NZS or other standards.
2. Rated Voltage:450/750V ;300/500V ;300/300V
3. Construction:
Conductor:Copper;
Insulation: Rubber
Inner sheath:Rubber
NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.
Also can do according to the customer's request.
4. Characters:
a.Max long-time operating temperature of conductor :65°C
b.Light-duty/Medium-duty/Heavy-duty rubber sheathed flexible cable optional
c.Insulation resistance within the insulated cores of the cable converted to 20°C.Section 35mm2 and below should be not less than 50MΩ.KM,50~150 mm2 not less than 30 MΩ.KM.185~400 mm2 not less than 20 MΩ.KM.
5.Type & Description & Application:
| Type | Name | Rated Voltage(V) | Section Area(mm2) | No. of Core | Main Application |
| 245 IEC 53 YZ | Common Rubber Sheated
Flexible Cable | 300/500 | 0.75-2.5 | 2,3,4,5 | Used for various
mov able electrical
equipments and tools |
| 245 IEC 57 YZW | Common Chlorop rene Rubber
Sheathed Flexible Cable | | 0.75-2.5 | 2,3,4,5 |
| 4-6 | 2,3,4,5 |
| YZ YZW | Medium Type Rubber
Sheated Flexible Cable | 300/500 | 1.5-6 | 4(three and half cores) | Used for various
movable electrical
equipments and be
able to stronger
outer mechanical
force |
| 0.75-6 | 6 |
| 245 IEC 66 YCW | Heavy Type Rubber
sheathed Flexible Cable
For Using Outdoor | 450/750 | 1.5-400 | 1 |
| 1.0-25 | 2 |
| 1.0-95 | 3 |
| 1.0-150 | 4 |
| 1.0-25 | 5 |
| YC | Heavy Type Rubber
Sheated Flexible Cable | 450/750 | 1.5-400 | 1 |
| 1.5-95 | 2 |
| 1.5-150 | 3,4 |
| 1.5-25 | 5 |
| 2.5-150 | 4(three and half cores) |
| YCW | Heavy Type Rubber
Sheated Flexible Cable
for Using Outdoor | 450/750 | 35-95 | 2 |
| 120-150 | 3 |
| 2.5-150 | 4(three and half cores) |
6. Advantages:
a. Excellent electric and mechanical characteristics and wear-resisting.
b. Good properties of oil and weather resistance.
c. Simple in structure,Convenient to use
NO. Of Cores
Rated voltage
Nominal thickness of insulation
Thickness of sheath
Diameter of conductor
Approx. Overall diameter
Max cable weight
Nominal cross sectional area of conductor etc.
All above can do as every different standards OR as your special request
Please contact me freely; maybe I’ll give you a big surprise. ^.^
