Rubber Insulated Welding Cable
Uses:
Apply to the secondary side wiring and connecting welding clamp dedicated cables, the exchange does not exceed the rated voltage 200 V DC and pulse of 400 V peak. Single core structure, a multi-unit complex cutter made of soft wire. Conductive wire core heat-resistant polyester film used outside insulation wrap packages, with the outermost layer of insulation made of rubber sheathing as a protective layer.
Instruction
Welding Cables are suitable for the secondary side voltage exchange does not exceed 200 V and 400 V peak pulsating DC welding machine with secondary side wiring and connecting welding clamp purposes. Cable allows long-term temperature: ≤ +65
Type:
Type | Name |
YH | Welder natural rubber sheathing cables |
YHF | Chloroprene or elastomer sheathe cable welder |
Cable main technical performance
section | Core structure cores/mm | 20 conductive wire core DC resistance Ω/km |
No Tinning | Tinning |
10 | 322/0.20 | ≤1.19 | ≤1.95 |
16 | 513/0.20 | ≤1.16 | ≤1.19 |
25 | 798/0.20 | ≤0.758 | ≤0.780 |
35 | 1121/0.20 | ≤0.536 | ≤0.552 |
50 | 1596/0.20 | ≤0.346 | ≤0.390 |
70 | 2214/0.20 | ≤0.268 | ≤0.276 |
95 | 2997/0.20 | ≤0.198 | ≤0.204 |
120 | 3702/.0.20 | ≤0.161 | ≤0.164 |
The advantages of our company:
1) Our company is a professional supplier of various kinds of cables for over 10 years.
2) The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.
3) The price is averagely 10%~20% lower than the other competitors. Because our factory is located
in a small town. The labor and raw materials cost are relatively low there.
4) Huge Inventory Allows Us To Ship Your Order Immediately
5) Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
6) We ship worldwide.
Package:
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request
Note: Finished drills immersion in water 1 hour at room temperature, withstood 50Hz, 200V AC voltage of 5 min no breakdown.

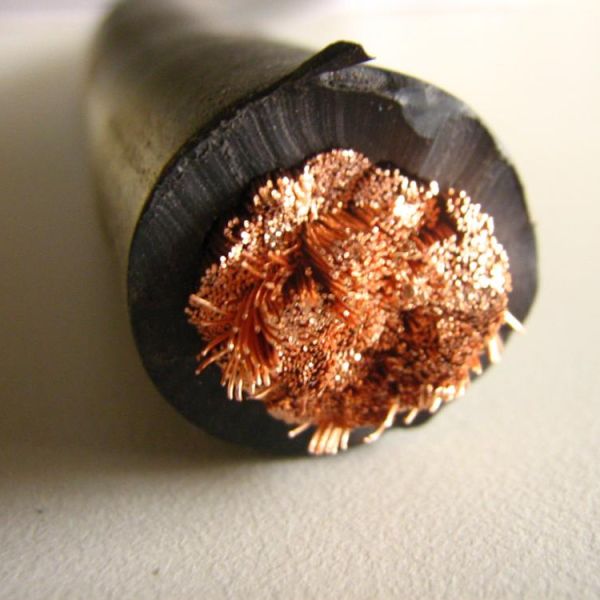

picture of welding cable
